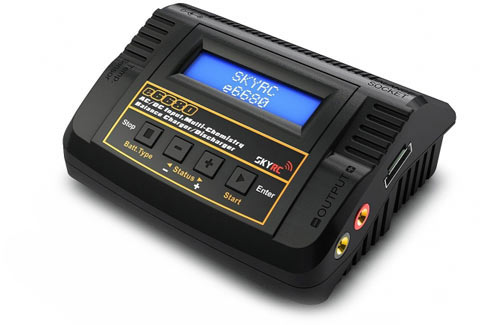

SkyRC IMAX e6680 AC/DC Charger

SkyRC IMAX e6680 AC/DC Charger.
The e6680 features a function that will reduce the current towards the end of the charge to avoid over-charging (Li** only). Especially for Lithium batteries, it can prevent overcharging which may lead to an explosion due to an incorrect input. It will terminate the charge automatically and sound an alarm if it detects any malfunction. In each program, the battery conditions are monitored and controlled to achieve the maximum safety. All settings can be configured by the user.

Internal independent lithium battery balancer
The e6680 employs an individual cell voltage balancer.

Balancing individual cells battery discharging
During the process of discharging, e6680 will monitor and balance each cell of the battery individually. An error message will be shown, and the process will be ended
automatically if the voltage of any single cell is abnormal.

Adaptable to various type of lithium battery
The e6680 includes programs for various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and storage mode of lithium battery
Sub-programs offer different charge states for LiPo batteries. "Fast charge" reduces the duration of charging, whereas ΅storeΆ state will control the final voltage of your
battery to a pre-determined value, ideal for long-term storage.

Maximum safety
Delta-peak sensitivity: The automatic charge termination program is based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the
threshold, the process will be terminated automatically.

Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for NiMH batteries of low impedance and capacity in the
'AUTO' charging mode.

Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated
automatically when you set the maximum value.

Temperature threshold*
The batteryΆs internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. *
This function is available by connecting optional temperature probe, which is not included in our package.

Processing time limit:
You can also limit the maximum charge time to avoid any errors.

Input power monitoring
If using a 12v battery as DC Input, the input voltage is monitored to ensure the source is not over-discharged. If it drops below the lower limit, the program will be ended
automatically.

Data store/load
A maximum of five battery presets can be stored for the users convenience. Users can call up these program memories at any time without any special program setting.

Cycle charging/discharging
Batteries can be cycled up to 5 times in one session, in either order (charge/discharge or discharge/charge).

AC Input: 100-240Volt
DC Input: 11-18Volt
Circuit Power: Max. Charge Power: 80W
Max. Discharge Power: 10W
Charge Current Range: 0.1-6.0A
Discharge Current Range: 0.1-2.0A
Current Drain For Balancing LiPo: 300mA/cell
NiCd/NiMH Battery Cell Count: 1-15Cells
LiPo/LiFe/Lilon Cell Count: 1-6Cells
Pb battery voltage: 2-20V

Specification
Weight: 490g	Dimensions: 135 x 112 x 60.9mm
