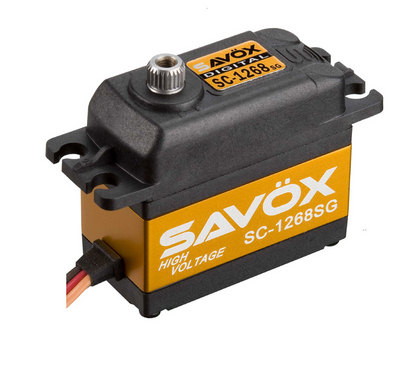

Savox SC-1268SG High Torque Steel Gear Digital Servo (High Voltage).
This is the Savox SC-1268SG High Torque Steel Gear Digital Servo
(High Voltage). Savox have now released their 'High Voltage' servo line
that can
be powered by a unregulated LiPo battery! These servos These servos
also feature a redesigned motor/controller unit, and use a 'bullet
proof' all steel gear set for unmatched strength.
Features:
- Combines leading
edge technology with super high 12 bit (4096) resolution.
- Higher performance due to increased voltage and improved technology
- Incredible torque
- Increased transit speed
- Increased efficiency
- Water resistant with 4 silicon seals implanted
- Strong and precise-made steel gears
- Suitable for 1/8th nitro racing and large scale aircraft, 600 and 700 class helicopters.
Dimensions(mm): 40.3x20.2x37.2
Weight(g): 62.0
Speed(@4.8V sec/60): .15
Torque(@4.8V oz-in): 160.0
Speed(@6.0V sec/60): .13
Torque(@6.0V oz-in): 208.3
Speed(@7.4V sec/60): .11
Torque(@7.4V oz-in): 347.2
Gear: Unique Steel
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
