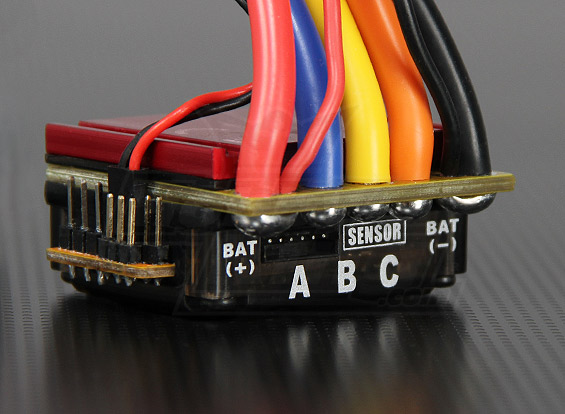

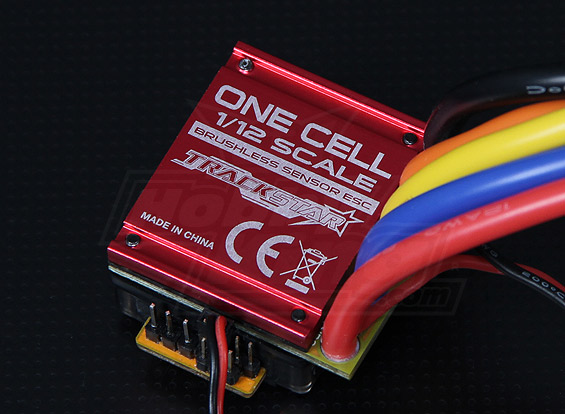

Turnigy TrackStar One Cell 120A 1/12 And 1/10 Sensored Brushless

Turnigy TrackStar One Cell 120A 1/12 And 1/10 Sensored Brushless RC Car ESC.

The Turnigy TrackStar One Cell 1/12th and 1/10th scale ESC is the latest addition to Hobby Kings Sensored Car ESC range.

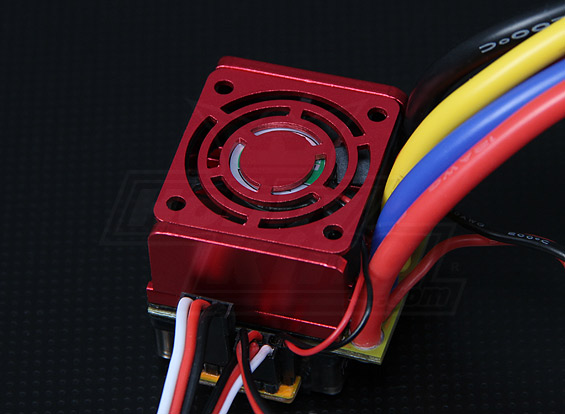

The TrackStar One Cell features a built in voltage booster for single cell Lipoly use in 1/12th and 1/10th scale racing. An additional heat sink and cooling fan have been included for 2S 1/10th race applications making the TrackStar One Cell a truly versatile ESC.

Using a Fast Silicon Labs MCU and high quality On-Semiconductor MOSFETs the TrackStar One Cell 120A ESC sets a new standard in high quality yet affordable car ESCs. With Intelligent MCU logic the TrackStar series ESCs allow extremely precise start up control and positioning feed back from the motor. This translates in to very smooth start up and acceleration.

Timing Indicator LED.
To conform with ROARs Sportsman Class racing rules and assist race organizers monitor driver compliance in non-timing modified race classes the TrackStar 1/10th ESC includes a timing mode indicator LED. At all times when the ESC is powered on and dynamic motor timing is set to a value greater than zero the white LED will illuminate indicating that the timing mode has been modified.

The Turnigy TrackStar One Cell 120A ESC also boasts a host of programing options not usually found in an ESC at this price and can be programmed with ease via the Turnigy TrackStar programing card (sold separately).

Specification:
Cont. Current: 120A
Burst Current: 200A
Motor Rotation: Fwd/Rev or Fwd/Brk
Input Power (Cells): 1-2S LiPo/LiFe, 3-6 NiMH (8.4V Max)
Motor Type: Sensored and sensorless Brushless Motors.
BEC Output: 6.0V, 1Amp, Built-in BEC with DC booster for 1 cell LiPo use.
Status LED (2 LEDs): White LED, 3 color LED (Red, Green & Orange)
Thermal Overload Protection: Yes
Dimensions (L*W*H/without fan): 36.5*42*18mm (1.44*1.65*0.71in)
Weight(Without wires): 34g (1.20oz)

Motor Limits
1S LiPo or 3-4S NiMH): ≥3.5T (1/12 on- road)
2S LiPo or 5-6S NiMH): ≥4.5T (1/10 on-road) ≥6.5T (1/10 off-road) *

Programming Options (Via Optional programming card or Throttle input)
Brake/Reverse type
Brake amount
Reverse amount
Punch Control
Drag Brake
Throttle Dead Band
Voltage Cut off
Motor Timing

Note: * 2S Lipoly use requires installation of the supplied heat sink and fan.
