AXIAL SCX10 II Trail Honcho 4WD 1/10 Rock Crawler Brushed RTR.
Key Features

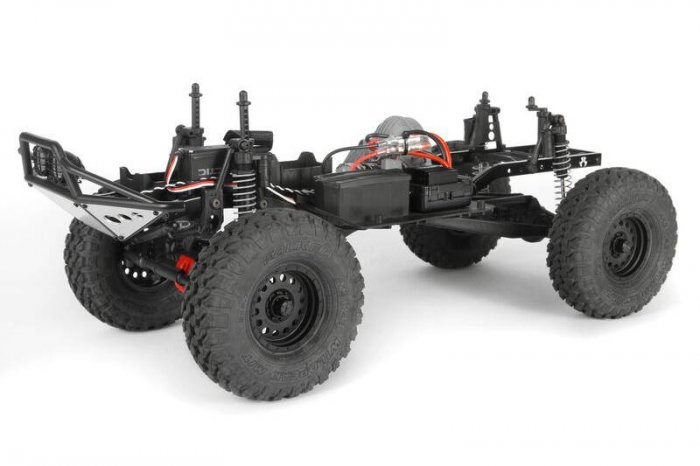

- Chassis: Scale steel C-channel side rails with adjustable body mount,
adjustable bumper mounts with swaybar mounting points, mounting
points for optional 2-speed and servo winch, adjustable chassis
mounted servo system
- Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar
driveshafts, UVJ style front driveshafts for up to 45° of steering
angle, full ball bearing drivetrain
- Transmission: AX10 three gear layout, metal motor plate, adjustable
ratio for high speed or competition level crawling speed
- Slipper Clutch: Dual pad design for added surface area, 32P gear
pitch for high-torque applications
- Motor: 35 turn, brush equipped, water resistant, integrated cooling
fan
- Radio: Tactic TTX200 2-channel SLT radio with TR325 Receiver,
steering and throttle end point adjustment & reverse, pushbutton
steering and throttle trim
- Steering Servo: Tactic TSX45 metal gear, water resistant, 151oz/in
(10.87kg/cm) torque rating, dual ball bearings
- ESC: AE-5L waterproof, switchable between LiPo or NiMH
operation with a simple jumper, Star plug battery connector,
built-in LED light controller (NOTE LED leads are not compatible
with old Axial LED light strings, or third party LED light strings)
- Spur Gear: 56T 32-pitch, plastic construction
Pinion Gear 15T 32-pitch, steel construction
- LED Lights: Four white for head lights and turn signal markers, and
two red lights for tail lights
- Battery Tray: Easy access front mount, accomodates batteries up to
5.75 x 1.2" (147 x 32mm) 3S, 5000mAh, with battery posts in
position dimensions are reduced to 5.4 x .94" (138 x 24mm)
- Front and Rear Axles: Hardened steel
- AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear
ratio for reduced torque twist, optional gearing choices, one-
piece axle housing, increased clearance, larger load rated
bearings for durability, 8° kingpin axle eliminates tire scrub,
single piece axle housing, one-piece all metal locker, 10°
increment adjustments for knuckle carriers and straight axle
adapters, optimized gear ratio; 3.75 compared to 2.92 previously,
for less torque twist

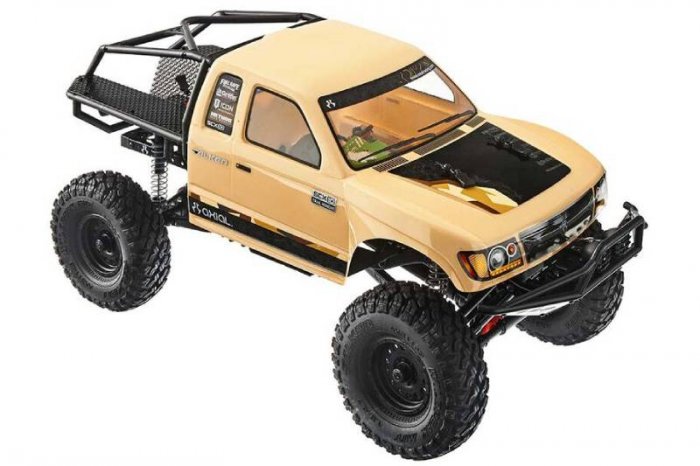

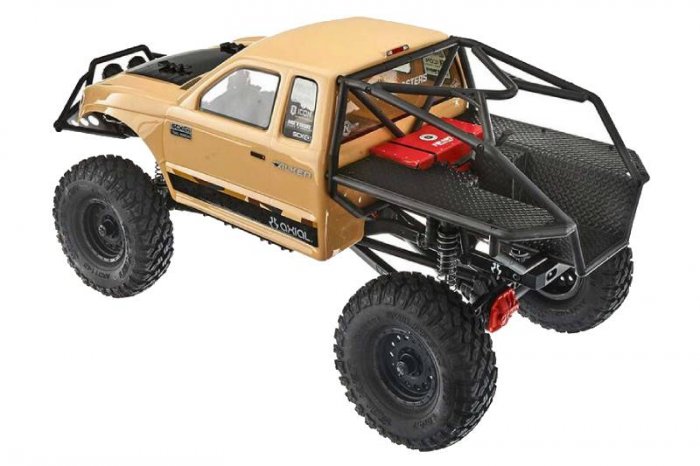

- Body: Painted Trail Honcho
- Front Bumper: Scale tube design with aluminum skid plates
- Wheels: 1.9" Method Hole, 1.02" (26mm) wide, 2.12" (53.9mm) tall,
12mm hex, matte black finish
- Tires: 1.9" Falken Wildpeak M/T, aggressively treaded Mud Terrain
tread with amazing traction on many surfaces, 4.7" (119.4mm) tall,
1.5" (38.1mm) wide
- Shocks: Coil over, oil filled, steel springs, white in color
- Suspension: Optimized suspension geometry with integrated mounts
upper and lower links, 4-link design reduces axle steer
and torque twist, and guards against suspension wrap-up in high-
power applications, composite links
- Steering: Proper CMS geometry using 3-link setup with panhard bar,
45° steering angle
In The Box
- (1) RTR SCX10 II Trail Honcho with Oil-Filled Shocks, Wheels, Tires, Body, Rock Sliders, Radio, ESC, Motor, Decals, Waterproof Receiver Box, LED Lights
- (4) AA Batteries
- (1) User Manual
Needed to Complete
- (1) 6-cell NiMH or 2-3S LiPo
- (1) Compatible Charger
- (1) LiPo Safe Charging Bag
