GMADE 1/10 R1 ROCK BUGGY 4WD RC CRAWLER ARTR - BLACK.
The R1 Rock Buggy is a shaft driven crawler that replicates the look of a
high performance rock buggy, and delivers performance that makes it a
capable scale recreation of the real thing. The molded composite tube
frame features an incredibly realistic appearance, and black pre painted
body panels. But this design does more than look the part, it provides
protection to your electronics, and keeps everything safe when you
tumble down the rocks.
Other notable features include tough universal slider shafts that
deliver the power from the transmission to the unique 'Portal' high
clearance front and rear axles. Plus, with a fully sealed transmission,
the awesome G-transition shocks, and standard 2.2 size wheels, the Gmade
R1 is destined to become a standard in the world of rock racing
crawlers.
This version of the Gmade R1 is sold in ARTR format (requires electrics).
R1 Tube Chassis
The one-piece graphite axle housing is made of high strength plastic
for maximum durability and easy maintenance. Inside, both front and rear
axles have solid differential gears to provide a stronger driving force
in any driving conditions. The gears are protected by a glossy metal
cover for added scale realism.

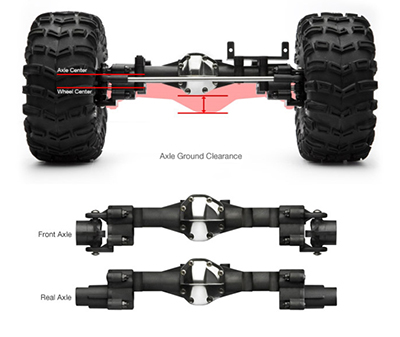

R1 Drive Train
Portal axles simply mean the drive axles are above the center of the
wheels. This gives theR1 greater ground clearance beneath the axles than
other trucks using the same tyres.
The R1 portal gear offers high ground clearance and can reduce speed

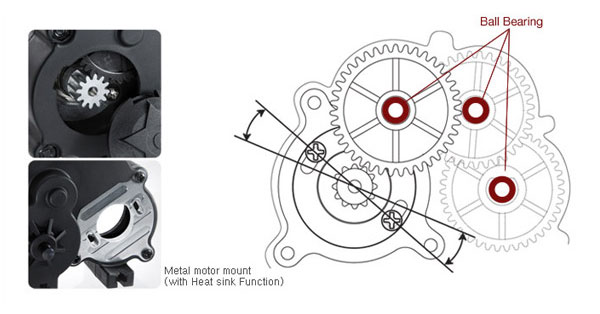

R1 Transmission
The perfectly sealed R1 transmission is dust proof. Full ball
bearings are placed at all axis of the gears. You can also adjust the
gear mesh backlash exactly the way you want because the motor mount cap
can be opened and closed for you to see in.

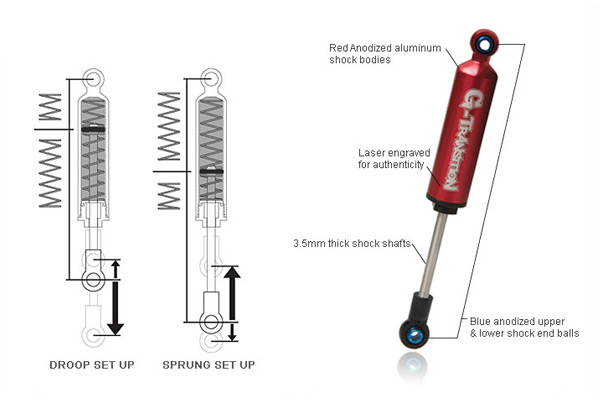

R1 G-Transition Shock Absorber

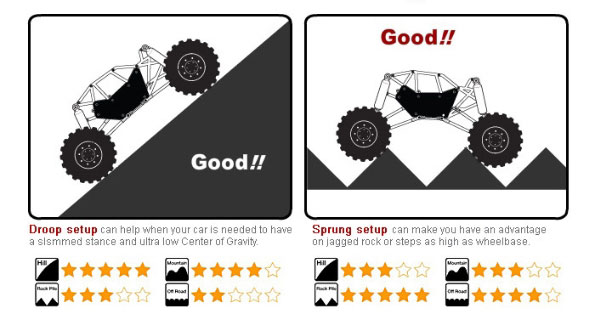

The G-Transition shock settings can be changed to suit your driving
style, courses and terrain, these can be setup to run in Droop or Sprung
suspension setup. This can greatly upgrade your driving performance.
You can set up to run in Droop or Sprung suspension setup
Gmade R1 Features:
- Realistic tube chassis
- Portal axles
- Portal gears
- Sealed dust proof transmission
- Full ball bearings on all of the gears
- G-Transition Shock absorbers
- 2.2" GT beadlock wheels
- Super soft Bighorn tyres
- Body panels and decals
Spec Check:
- Width: 290mm (11.4 inch)
- Height: 190mm (7.5 inch)
- Length: 440mm (17.3 inch)
- Wheelbase: 310mm (12.2 inch)
- Wheels: 56mm (2.2 inch) Dual side beedlock wheels
- Tyre Height: 136mm (5.3 inch)
- Tyre Width: 59mm (2.3 inch)
- Tyre Inner Diameter: 56mm (2.2 inch)
- Axle Ground Clearance: 55mm (2.2 inch)
- Center Ground Clearance (Droop Set-up): 75mm (3 inch)
- Center Ground Clearance (Sprung Set-up): 95mm (3.7 inch)

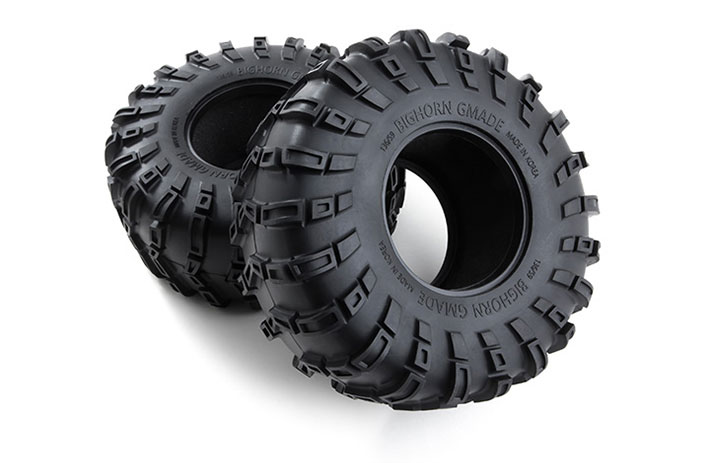

2.2 inch Bighorn Tyre
The Bighorn tyre is made of a super soft compound which is designed
to provide high grip over all kinds of terrain. The large diameter
enables it to run smoothly on uneven road surfaces and with large deep
lugs provides exceptional traction over rock, mud, and dirt.
Tyre Spec:
- Tyre Height: 136mm(5.3")
- Tyre Width: 59mm(2.3")
- Inner Diameter: 56mm(2.2")
Required for completion: 2-Channel
radio system & high torque steering servo, 540 size rock crawler
motor & ESC, Battery pack & compatible battery charger, Pinion
gear.
