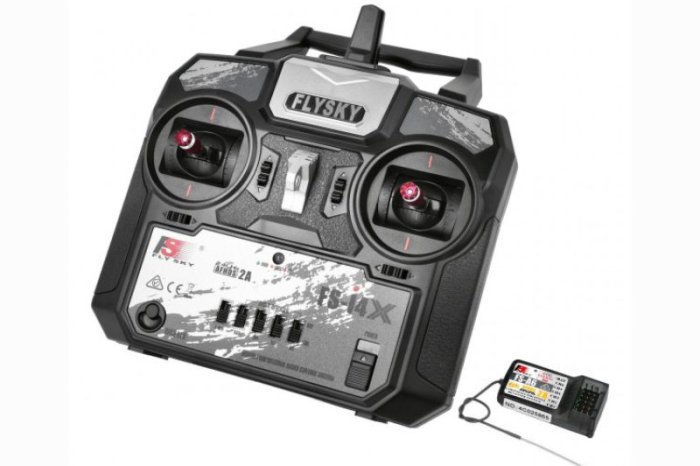

Flysky i4X 4 channel Radio Set

Flysky i4X 4 channel Radio Set

The FS-i4X is a classic 4-channel transmitter with 2.4GHz and is ideal for entry-level control of fixed-wing aircraft, gliders and boats with channel reversal and channel mixing functions. The transmitter runs on the AFHDS2A protocol and can support up to 10 channels through DIY upgrades.

Features:

AFHDS 2A
Up to 10 channels
Incl. channel reversal and channel mixing function
Bidirectional communication
Multi-channel hopping frequency
Omnidirectional antenna with amplification
Unique ID recognition system
Low energy consumption

Technical Specifications:
Transmitter
Type: 2.405 - 2.475GHz
Frequency Protocol: AFHDS 2A and AFHDS
Channels: 4-10 (Standard: 4)
RC Models: Fixed-Wing, Glider, Helicopter
Distance: 500 - 1500m (air)
Channel Resolution: 1024
Battery: 4x 1.5V AA
Low Voltage Warning: < 4.2V
Antenna Type: Single
Display: -
Charging Interface: -
Data Interface: PS / 2 (PPM)
Temperature Range: 0°C to +60°C
Humidity Range: 20% to 95%
Online Update: No
Dimensions:
174x89x190mm
Weight: 323g
Receiver FS-A6
Channels: 6
Type: 2.405 - 2.475GHz
Frequency Protocol: AFHDS 2A
Suited Transmitter: All transmitter with AFHDS 2A support
Antenna Type: Single (150mm)
Voltage:
4-6.5V
Data Interface: PWM
RSSI: No
Temperature Range: 0°C to +60°C
Humidity Range: 20% to 95%
Online Update: Yes
Dimensions: 40.4x21.1x7.3mm
Weight: 7g

Delivery:

FlySky i4X transmitter
1x receiver: FS-A6
Manuals
