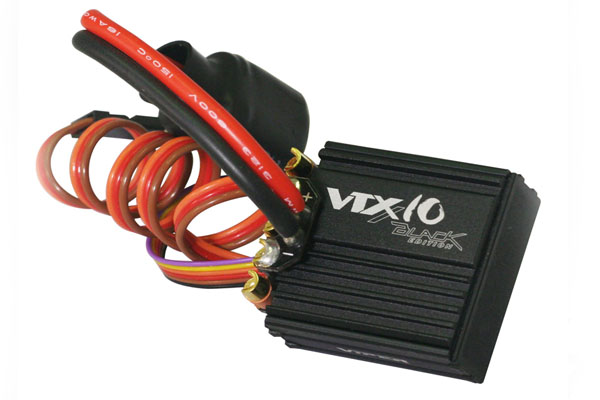

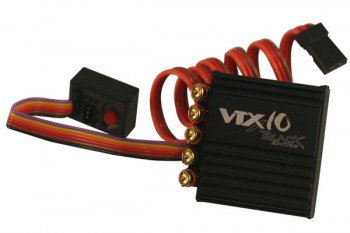

Viper VTX10R-BE Sensored Brushless ESC

Viper VTX10R-BE Sensored Brushless ESC. Viper Black Edition VTX Speed Control raises the bar as the most advanced speed control system available. Upgraded with stronger BEC, newly designed innovative V-LINK software and a focus on 2s battery applications, The Black Edition combines the VTXΆs ultra small footprint, and adjustability to be the clear choice in your hunt for podium finishes.

The Black EditionΆs all aluminum case has been redesigned to be even smaller yet able to disperse heat without the use of a fan. The new External Capacitor with remote wires increases capacity over 5 times from the previous design, to better handle the rigors racing with todayΆs high power motors, and to reduce the size of the ESC case for easier installation.

Specification:

• Motor Type: Sensored Only
• On Resistance: 0.000225Ω *2
• Support Li-Po Cell: 2S
• Max Bec Voltage/Amp: 7V/5A
• Motor limit: 2-pole 540/2.5T@2S
2-pole 550/4.5T@2S

• Dimensions: 30x32.5x16mm
• WEIGHT (without wires): 75g
