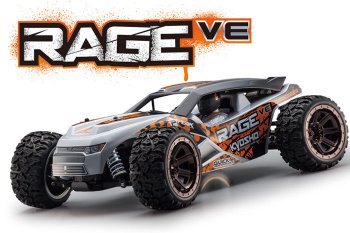

1/10 EP 4WD r/s Truck RAGE VE - KYOSHO

Newly designed electric off-road racing SUV truck!
For off-road racing fans, this machine delivers the best performance vs cost around!

Shaft driven 4WD can handle just about any type of rough terrain with ease. Features large 100mm diameter tires on inch up wheels supported by aluminum oil shocks together with waterproof speed controller, brushless motor and servo as standard. The bathtub chassis is equipped with heavy-duty suspension, slipper clutch and metal diff gears in the high durability drive train that can take plenty of punishment from hard driving. Team Orion speed controller and brushless motor combine to deliver the power to take on any course as aggressively as you can. Adjustable toe and camber angles on front and rear upper arms and steering rod provide plenty of scope for fine-tuning your setup. For performance vs cost, this machine is a certain winner!

Features 4 aluminum big bore shocks to absorb bumps from rough surfaces.

Sealed receiver box protects receiver from dust and dirt.

High response & high torque waterproof KS204WP servo pre-installed.

Inch up black chrome wheels with 100mm neo block high grip off-road tires.

Includes waterproof Team Orion R10 ONE speed controller. (MAX 25A)

Includes waterproof Team Orion NEON ONE brushless motor. (KV-2400)

Stylish FHSS 2.4GHz R/C system featuring dual rate function is pre-installed. Also features 4-channel receiver, providing scope for future development.

A Readyset is a fully assembled model that includes nearly  everything you need to run. Body Color scheme is complete so  only consumables like batteries and 7.4v Lipo/7.2v NiMh are  required so you can start operating the model without delay. ＜ ReadySet Contents ＞ Factory assembled chassis with pre-installed R/C unit Pre-painted assembled body with decals applied (with large wing) Syncro KT-200 transmitter Hex wrench (1.5mm) Cross wrench

＜ Required for Operation ＞ 4 x AA sized alkaline batteries for transmitter 7.2V-Ni-MH battery or 7.4V Lithium Polymer (Lipo) battery AC Charger

Chassis Technical Data

Length	395mm
Width	287mm
Height	152mm
Wheelbase	272mm
Tread (F/R)	213mm / 206mm
Tire(F/R)	Φ101mm × 50mm / Φ101mm × 50mm
Gear Ratio	9.62：1
Weight	1,764g (approx.)
Motor	Orion NEON ONE brushless motor. (KV-2400)
R/C System	Synclo KT-200
